PoC Specifications |
||||||
| System |
|
RTOS |
|
Network |
|
2G/4G |
| Platform |
|
Comlins or Odmaster |
|
Bluetooth |
|
V5.1BR+EDR+BLE |
| Network Version A |
|
B1/B3/B5/B8/B34/B38/B39/B40/B41 |
|
Network Version B |
|
B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 |
| Network Version C |
|
B2/B3/B4/B5/B7/B8/B28/B66 |
|
Network Version D |
|
Single SIM Slot |
|
Analog Specification-General |
||||||
| Frequency Range |
|
FRS/PMR446/UHF 400-480MHz |
|
Channel Capacity |
|
16/22/199(optional) |
| Channel Spacing |
|
W: 25 kHz ; N: 12.5 kHz |
|
Standby Current |
|
40 mA |
| Frequency Stability |
|
±2.5PPM |
|
Operating Temperature |
|
-10℃~+60℃ |
|
Analog Specification-Transmitter |
||||||
| Carrier Frequency Tolerance |
|
±2.5PPM |
|
Carrier Output Power |
|
≤2W |
| Modulation Limiting |
|
W≤5kHZ N≤2.5kHZ |
|
Modulation Characteristics |
|
+1~-3dB(0.3~3khz) |
| Emissiom Current |
|
≤1200mA |
|
Audio Distortion |
|
≤5% |
| Adjacent Channel Power |
|
≥60dB |
|
Spurious RF Components |
|
≤-30dBM |
|
Analog Specification-Receiver |
||||||
| Receive Sensitivity |
|
≤0.25uV |
|
Adjacent Channel Selectivity |
|
≥70dB |
| Intermodulation Immunity |
|
≥65dB |
|
Spurious Response Immunity |
|
≥70dB |
| Blocking Characteristic |
|
≥84dB |
|
Audio Power Output |
|
＞0.7W |
| Audio Response |
|
+1~-3dB(0.3~3khz) |
|
Audio Distortion |
|
≤5% |
|
General |
||||||

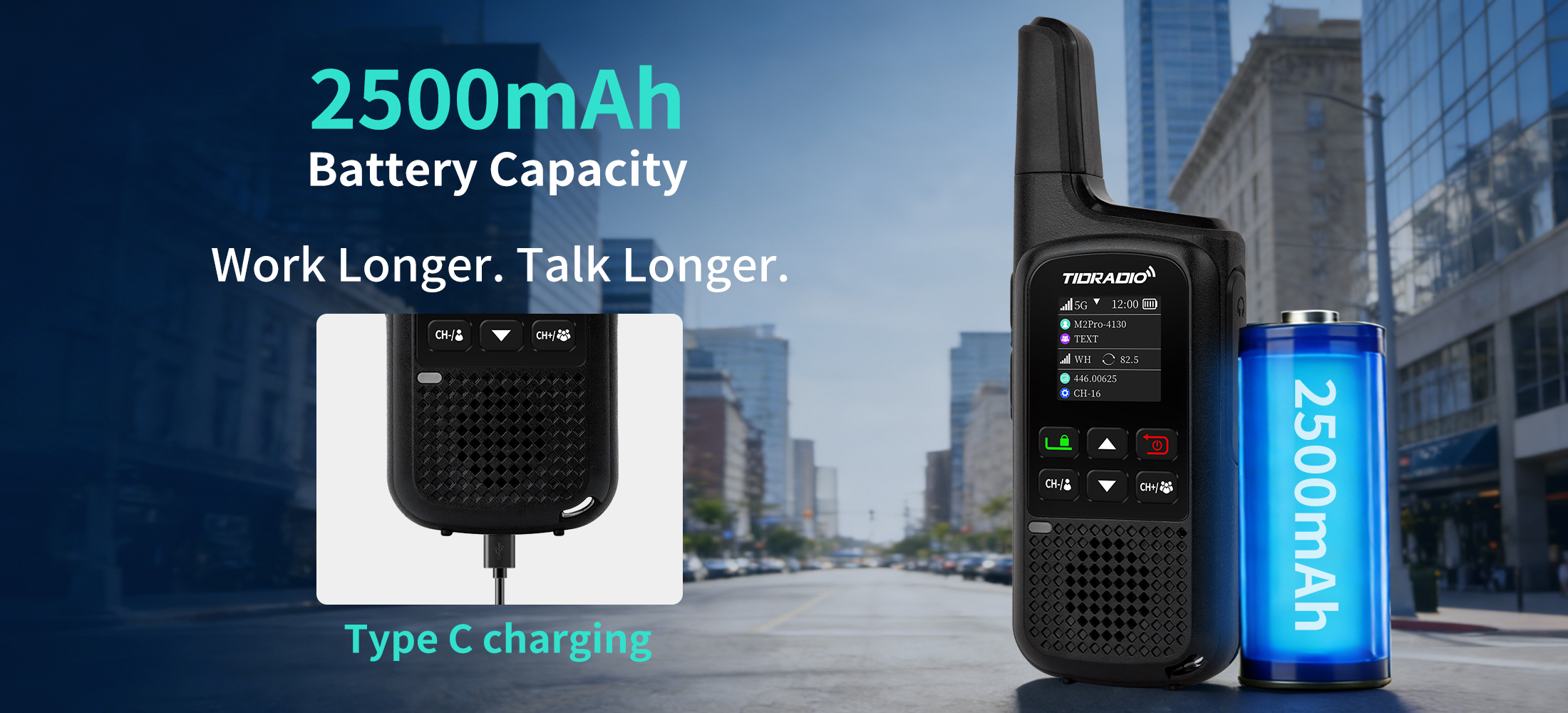

| Battery Capacity |
|
2500mAh |
|
Audio Power Output |
|
2W |
| Operating Voltage |
|
DC3.7V |
|
Weight |
|
150g |
| Dimension |
|
165*50*30 mm |
|
Programming Interface |
|
Type-C |
| Charging |
|
Type-C 5V/1A |
|
|||
